Custom Semiconductor Wafer End Effector CNC Machining Service Precision Wafer Handling Robot Components OEM ODM Manufacturer

Custom Semiconductor Wafer End Effector CNC Machining Service Precision Wafer Handling Robot Components OEM ODM Manufacturer

High Precision CNC Machining/±0.005mm Tolerance/OEM & ODM Available/Prototype to Mass Production/Aluminum / Stainless Steel / Titanium/3/4/5 Axis CNC Machining/Fast Lead Time

Product Description
Key attributes
About the company
Material capabilities and surface treatment capabilities
Quality Assurance
Production process
Why Choose Us
FAQ
Related Products

Product Description

We specialize in high-precision semiconductor wafer handling components with advanced 5-axis CNC machining and engineering-driven manufacturing solutions for global equipment manufacturers.

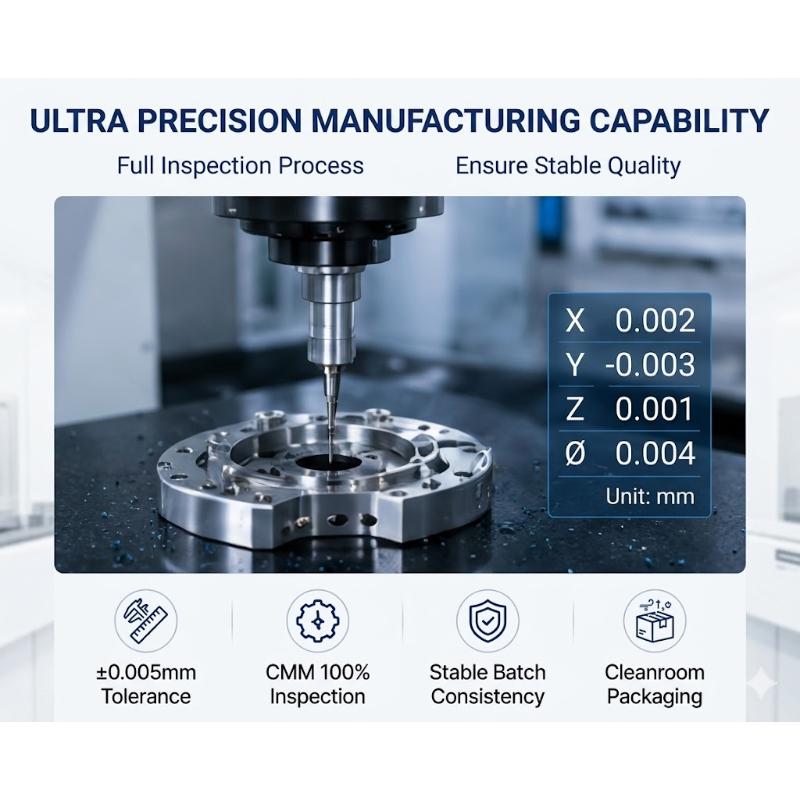

Ultra-Precision CNC Machining with tolerance up to ±0.005mm for semiconductor-grade applications

5 Axis CNC machining capability ensures complex geometry and high-accuracy wafer handling structures

Lightweight structural design optimized for robotic motion efficiency and reduced inertia

Vacuum-compatible machining for wafer pick-and-place and cleanroom automation systems

Multi-material processing including Aluminum 6061/7075, Stainless Steel, Ceramic and PEEK

Precision micro-hole and vacuum channel machining for wafer adsorption systems

Engineering support with DFM analysis to optimize design, performance and cost efficiency

OEM & ODM full customization from prototype development to mass production

Strict quality control with CMM full inspection and dimensional accuracy report

Cleanroom cleaning and anti-contamination packaging for semiconductor applications

Key attributes

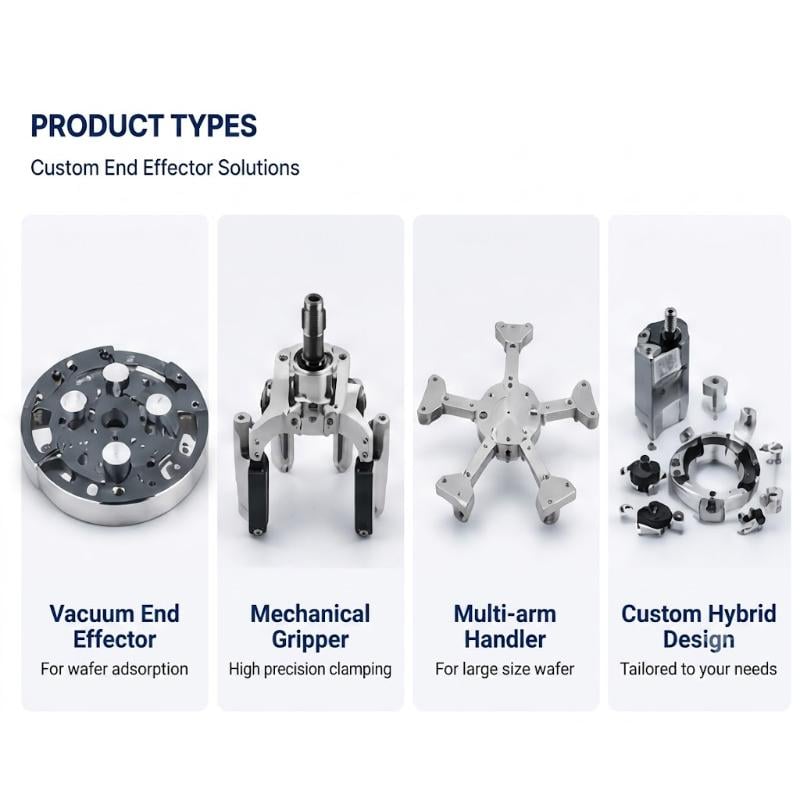

Product Name	Wafer End Effector
Product Type	Semiconductor Robot Handling Component
Processing Service	CNC Machining, Milling, Turning, 5 Axis Machining
Material	Aluminum 6061/7075, Stainless Steel, Ceramic, PEEK (Custom Available)
Tolerance	±0.005 mm
Surface Treatment	Anodizing, Hard Anodizing, Sandblasting, Polishing, Cleanroom Cleaning
Application	Semiconductor Wafer Handling and Automation Equipment
Customization	OEM & ODM Custom Service Available
Drawing Format	STEP, STP, IGS, DWG, PDF
Quality Control	CMM Inspection and 100% Dimensional Inspection

About the company

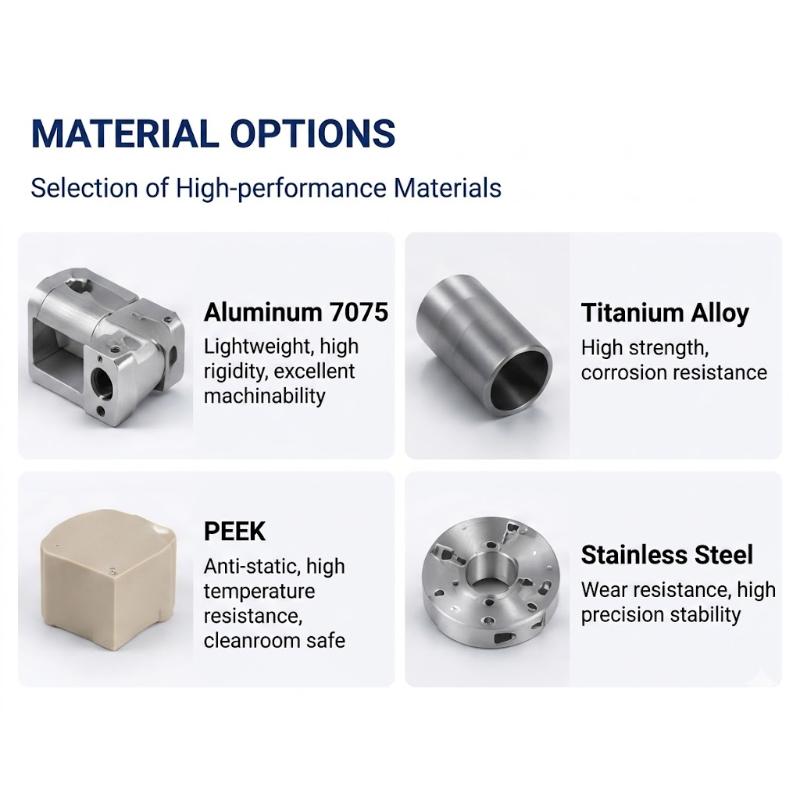

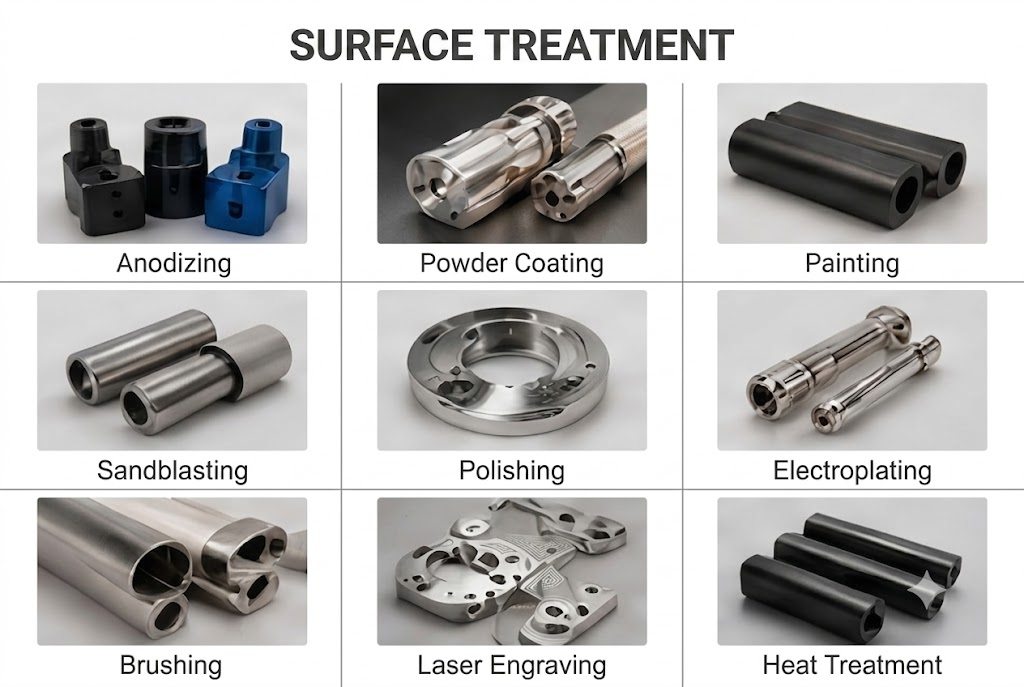

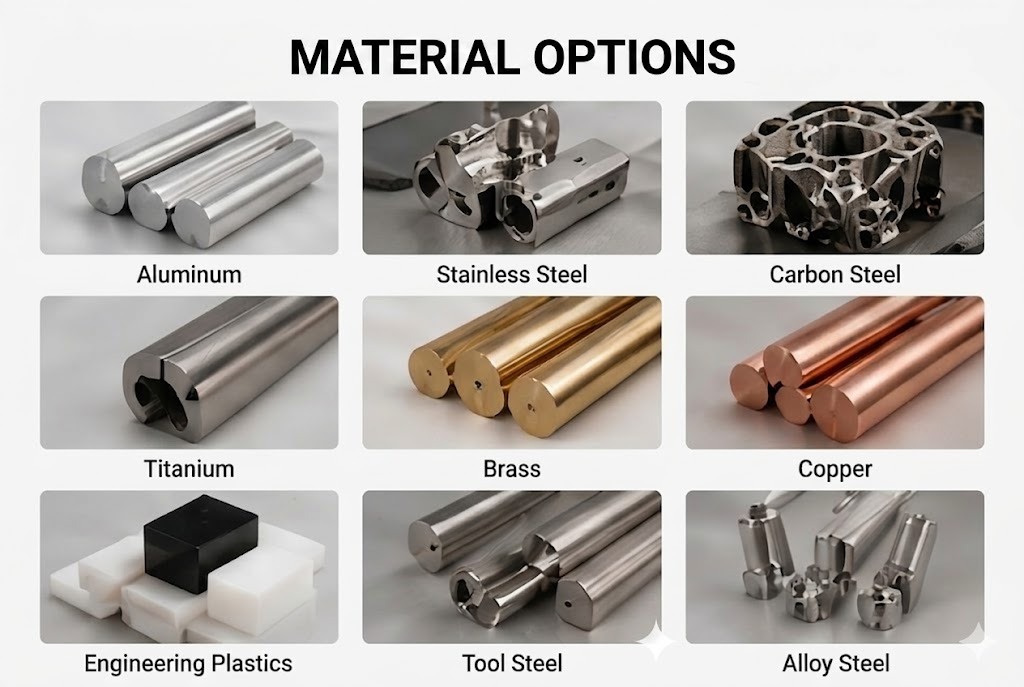

Material capabilities and surface treatment capabilities

Quality Assurance

CMM Inspection

Material Certification

First Article Inspection

In-Process Inspection

Final Inspection

Inspection Report Available


Production process


Why Choose Us

13+ Years CNC Experience

±0.005mm Precision

3-5 Days Rapid Prototype

OEM & ODM Support

24/7 Production Capacity

One-Stop Manufacturing Solution

Global Export Experience

FAQ

Q: Are you a manufacturer ?

A: Yes, we are factory in Guangdong, China.
Q: How long is your delivery time?

A:

Machining is 3-7 days for sample, 15-20 days for batch according to quantity;

Molding is 25 days for sample, 15-20 days for bulk.
Q: Do you provide samples ? is it free?

A: Yes, we can, it need the sample fee, but can be refunded when place bulk order.
Q: What is your terms of payment ?

A: We offer flexible payment methods including bank transfer (TT), PayPal, Western Union, and Letters of Credit to facilitate secure global transactions. 30%-50% in advance, pay balance before shipping.
Q: Do you offer custom branding and packaging?

A: Yes, we can accommodate custom logos and packaging designs based on order quantities. Please discuss your specific needs with our sales team.
Q: Do you provide product customization services?

A: Yes, we support OEM/ODM customization based on your technical drawings, 2D/(PDF/CAD)3D(IGES/STEP).
