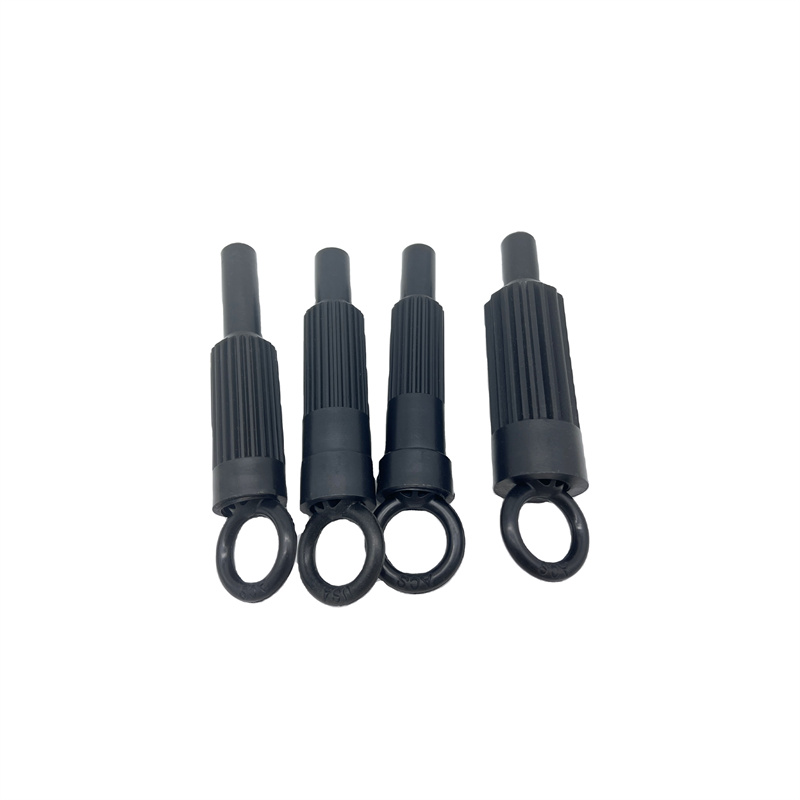

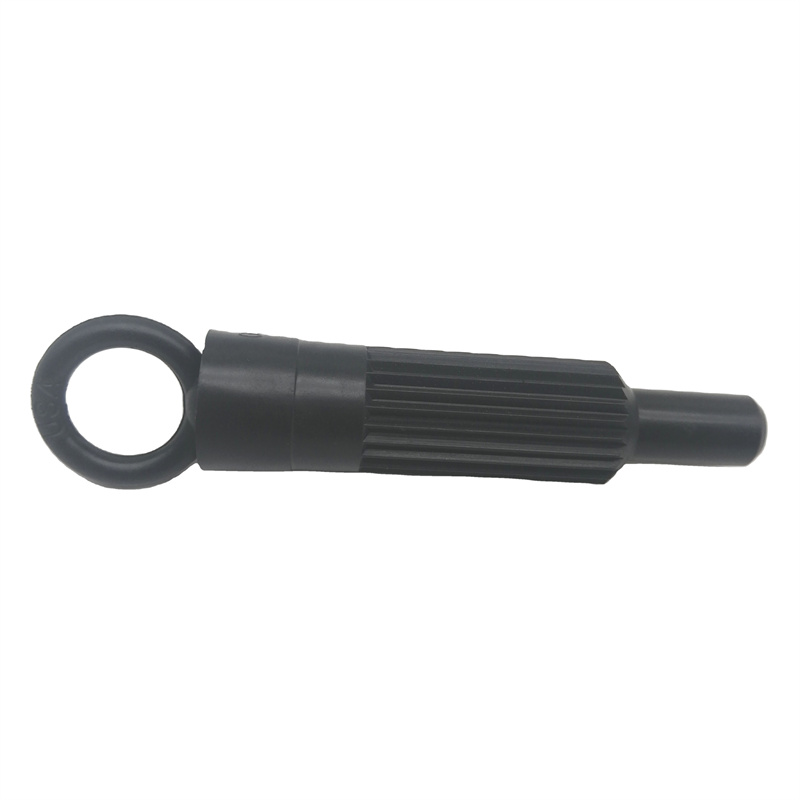

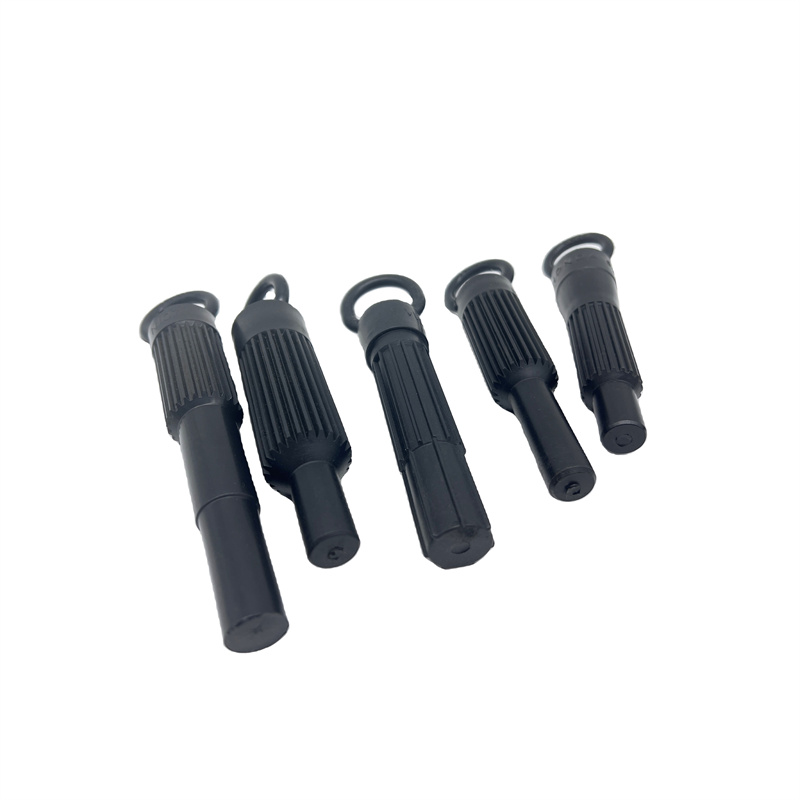

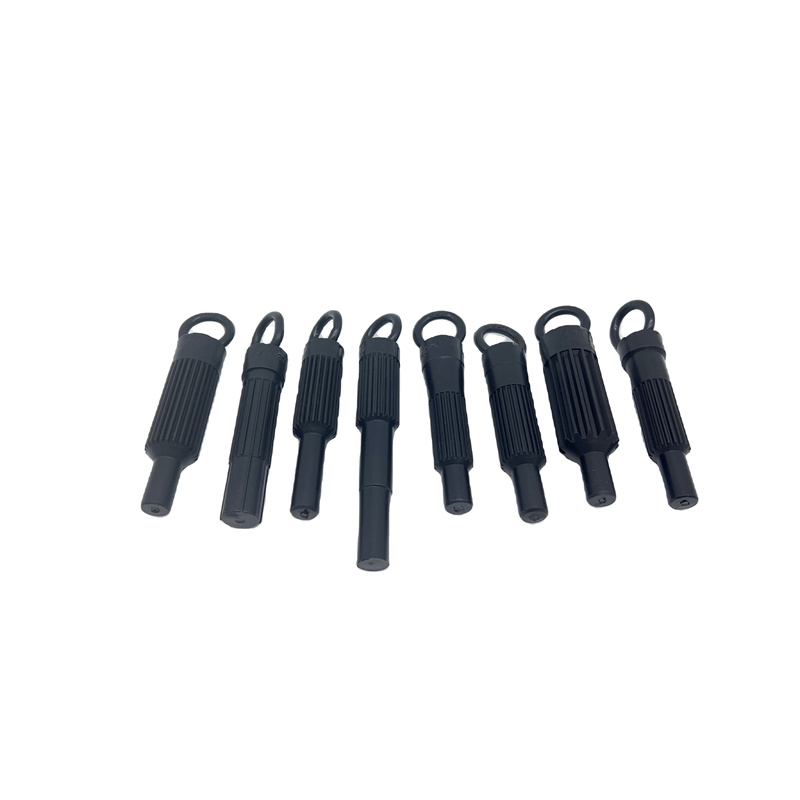

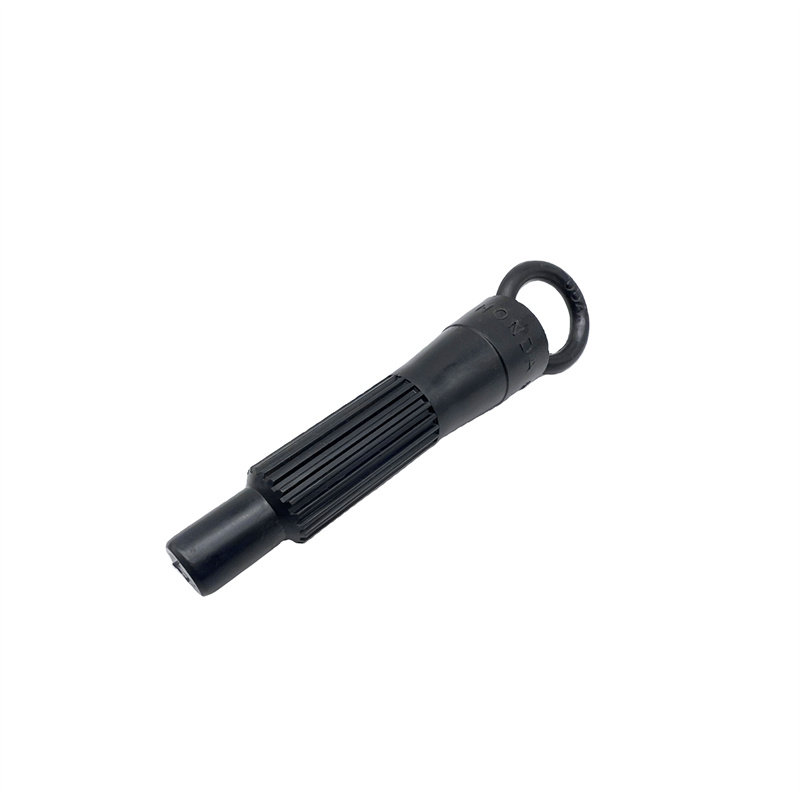

Different Clutch Type Car Spline Car Tools Alignment Clutch Tool

Different Clutch Type Car Spline Car Tools Alignment Clutch Tool

Auto Transmission Systems Clutch Master Cylinders Different Type Car Spline Car Tools Alignment Clutch Tool.The clutch spline is one of the most crucial and precise structures on the clutch plate. It is located on the inner ring of the clutch plate and consists of a series of evenly distributed protrusions (teeth) and grooves. These splines precisely mesh with the corresponding external splines at the front end of the transmission input shaft, forming a key mechanical link that transmits engine power to the transmission.

Product Description
Key Attributes
Model Number
Why Choose Us
FAQ
Related Products

Product Description

① The core of power transmission

The spline is the direct connection point between the clutch plate and the input shaft of the transmission. When the clutch is engaged, the engine's power is transmitted to the clutch disc through the flywheel and pressure plate, and then to the input shaft of the transmission through the spline meshing, ultimately driving the vehicle forward.

② Axial sliding and buffering

Spline connections are not completely rigidly fixed. It allows the clutch plates to slide slightly axially along the input shaft of the transmission during disengagement and engagement. This is the mechanical foundation for achieving a smooth start and smooth gear shifting.

③ Components of torsional shock absorption

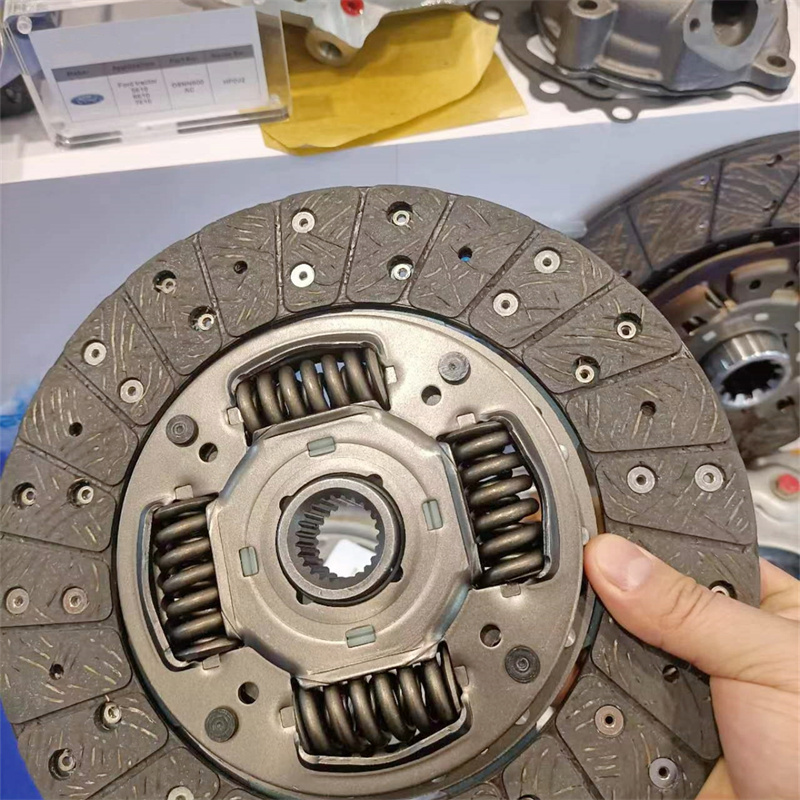

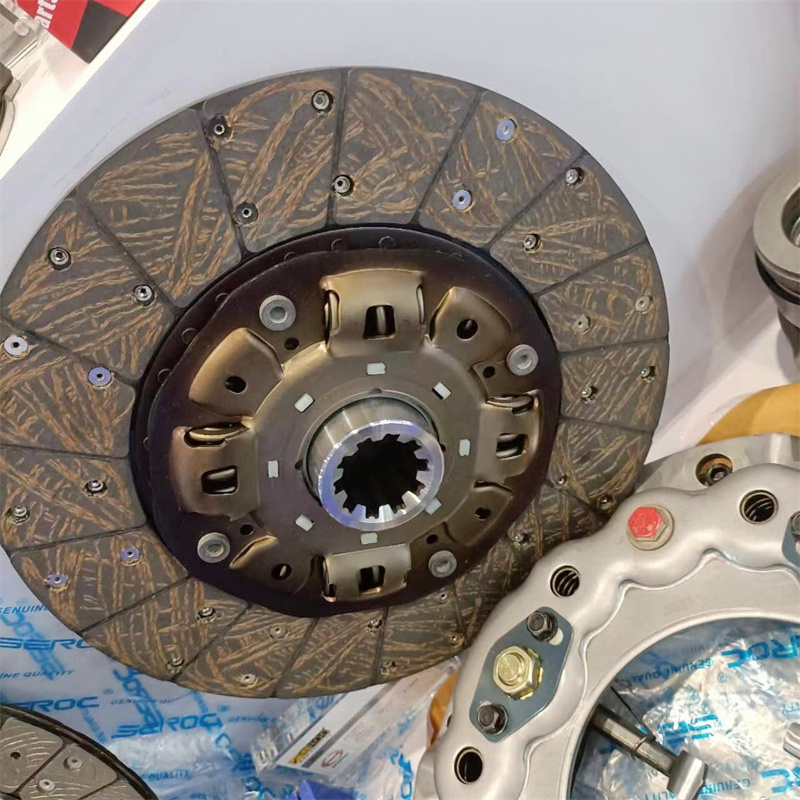

In modern clutch plates, the spline area is usually integrated with the torsional shock absorber. When the engine output torque fluctuates or is impacted, the shock-absorbing spring will work, allowing for a slight relative rotation between the clutch hub (i.e., the splined part) and the friction plate body, thereby absorbing vibration and noise, protecting the transmission gears, and enhancing driving smoothness.

Key Attributes

Place of Origin	Guangdong, China	Product Name	Alignment Clutch Tool
Material	Nylon	Plastic Modling Type	Plastic Injection
Application	Auto Transmission Systems	Model Number	Different Type
Function	Car Tool	Packing	Neutral Packing
Single Gross Weight	0.026 kg	MOQ	500-1000pcs

Model Number

No.	ALIGNMENT TOOL	Spline	OD
1	ACURA-88(INTEGRA)	24	26
2	HONDA-58(ACCORD)	24	26
3	HONDA-59(CIVIC)	20	21.2
4	BNW25	10	33.16
5	CY01	10	28.12
6	SUBARU-90(WRX)	23	26.6
7	NISSAN-01(300AX)	24	26
8	NISSAN-68	18	26.6
9	NI01	24	25.4
11	NI04	18	20.76
12	NI07	24	24.78
13	NI09	21	22.54
14	TOYOTA-11	21	27.4
15	TOYOTA-12(COROLLA)	21	27.62
16	TOYOTA17(TY10)	21	26.26
17	TY01	21	27.3
18	TY02	14	31.12
19	70(TY05)	14	32
20	TY05	14	31.1
21	TY10	21	26.26
22	TY12	21	27.18
23	K73(TY13)	21	22.86
24	TY13	21	22.62
25	VW-97(VR6)	14	21.5
26	FC10FC10	10	25.82
27	FD04	23	24.5
28	FD12	23	24.58
29	FD13	18	18.6
30	FE12(HD01)	20	21.7
31	FF23(FD04)	23	24.64
32	GM9	23	25.1
33	GM09	23	24.7
34	GM10	10	27.7
35	GM26	26	27.4
36	GM GEO 47	20	25.67
37	SU01	24	24.6
38	HD01	20	21.68
39	M101	23	24.8
40	M102	20	21.6
41	FORD20(MI02)	20	21.9
42	MI03	14	27.54
43	MZ01	20	21.54
44	MAZDA 05(FD02)	22	23.14
45	MAZDA 89(MZ01)	20	21.7
46	IZ01	24	24.76
47	30-1301(LT1)	26	27.18
48	30-1302(CAVALIER)	14	24.84
49	30-5105(A4)	23	23.22
50	30-5301(M3)	10	27.56
51	30-7205	24	26.1
52	30-7207(CIVIC 21 SPLINE)	21	20.8
53	30-8407(MR2 2.2)	20	26
54	30-8408	10	27.3

Why Choose Us

High-Precision Equipment

Equipped with advanced facilities such as 5-axis CNC, precision turning and milling compound centers, and slow wire electrical discharge machining, it can meet the high-precision processing requirements of ±0.005mm

Rapid Response For Small Batches

Flexible production scheduling, supporting orders as small as 1 piece, and shortening the delivery cycle (such as 72-hour urgent order delivery)

One-Stop Service

We offer a one-stop solution from drawing design to processing, assembly and after-sales service, reducing communication links with customers

Material Adaptation Ability

Proficient in processing materials such as stainless steel, titanium alloy, aluminum alloy, and engineering plastics, and providing supporting services for heat treatment and surface treatment (such as anodizing and coating).

FAQ

Q: Are you a manufacturer ?

A: Yes, we are factory in Guangdong, China.
Q: How long is your delivery time?

A:

Machining is 3-7 days for sample, 15-20 days for batch according to quantity;

Molding is 25 days for sample, 15-20 days for bulk.
Q: Do you provide samples ? is it free?

A: Yes, we can, it need the sample fee, but can be refunded when place bulk order.
Q: What is your terms of payment ?

A: We offer flexible payment methods including bank transfer (TT), PayPal, Western Union, and Letters of Credit to facilitate secure global transactions. 30%-50% in advance, pay balance before shipping.
Q: Do you offer custom branding and packaging?

A: Yes, we can accommodate custom logos and packaging designs based on order quantities. Please discuss your specific needs with our sales team.
Q: Do you provide product customization services?

A: Yes, we support OEM/ODM customization based on your technical drawings, 2D/(PDF/CAD)3D(IGES/STEP).
